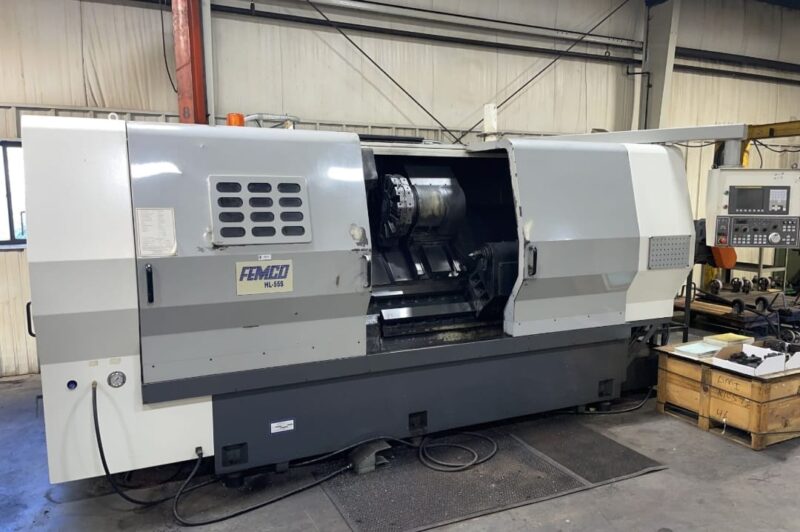

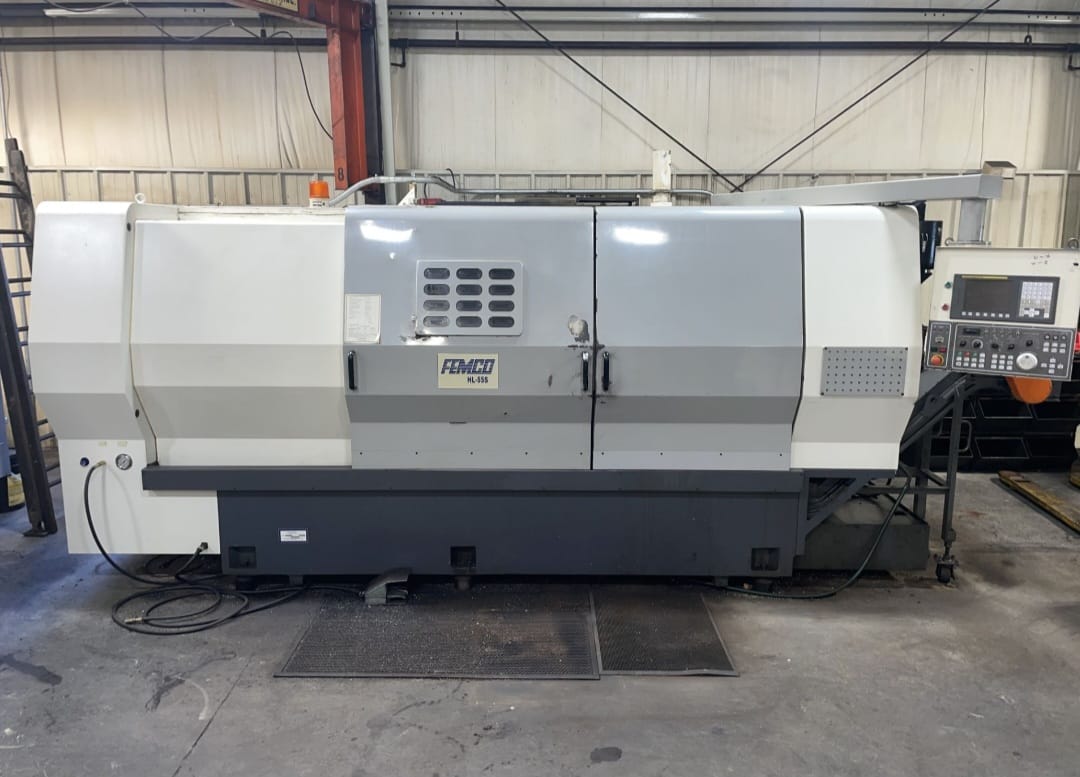

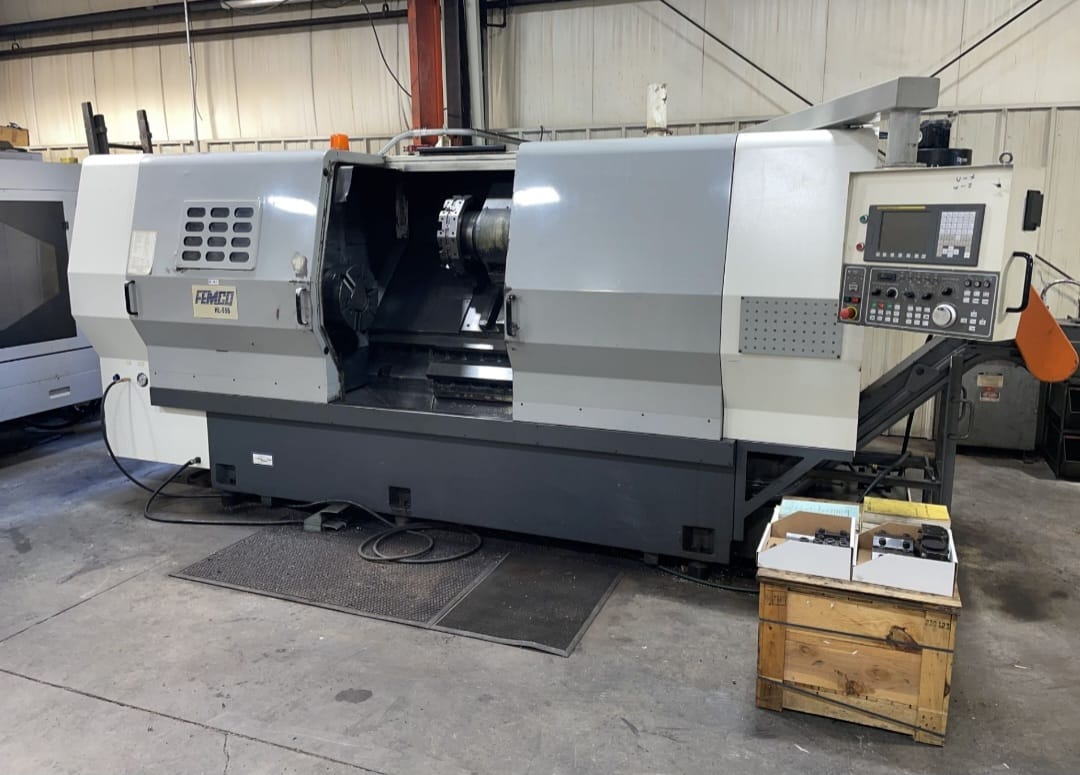

CNC TURNING CENTER
Get Instant Query| CNC Machine Specifications | |
|---|---|
| TYPE | CNC LATHE MACHINE |
| MODEL | FEMCO HL55 TAIWAN |
| MAX TURNING DIAMETER | 640MM |
| MAX TURNING LENGTH | 1250MM |
| SPINDLE BORE | 132MM |
| TOOLTURRET | 12 STATION |
| TAILSTOCK | YES |
🔧 Key Specifications
The HL-55 series offers various models with different capacities:Fatek2+1MachineTools+1
-
Swing Over Bed: 708 mm
-
Max Turning Diameter: 640 mm
-
Max Turning Length: From 1070 mm (HL-55S 1250)
-
Bar Capacity: 117 mm
-
Spindle Nose: A2-11
-
Spindle Bore: 132 mm
-
Spindle Speed: Up to 2500 RPM
-
Spindle Motor Power: 22/26 kW (continuous/30 min)
-
Rapid Traverse Rates: X-axis: 16000 mm/min, Z-axis: 20000 mm/min
-

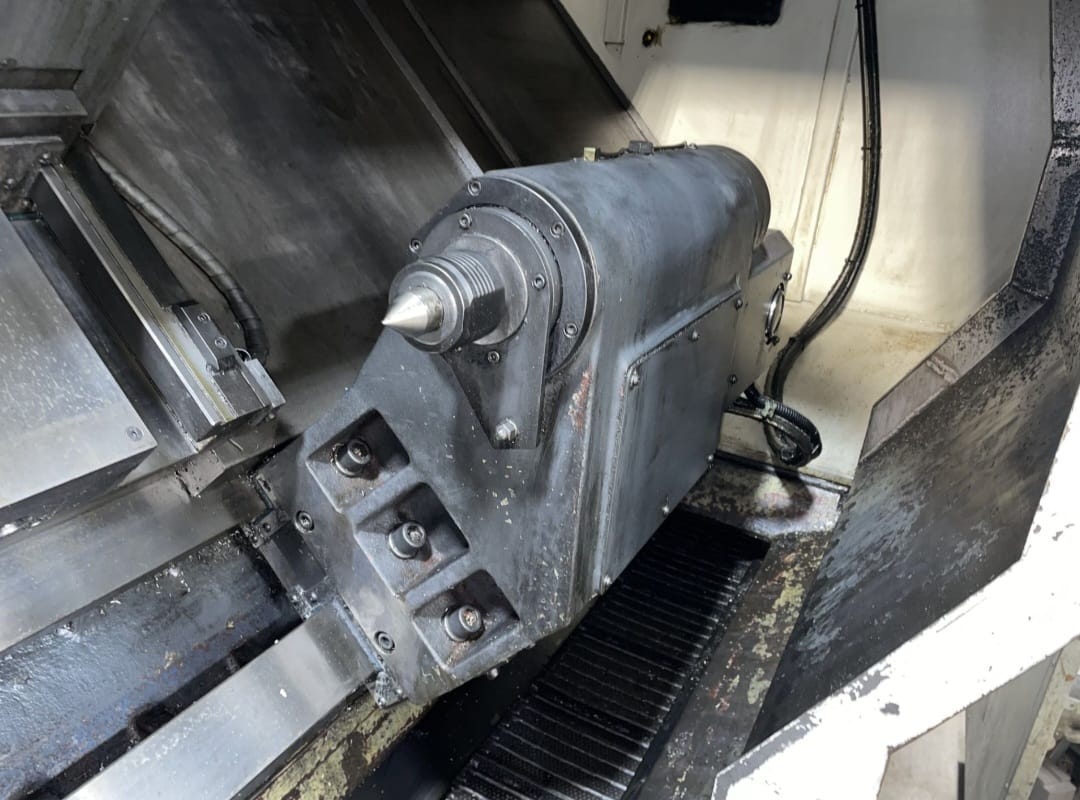

Tailstock: MT#5, with a thrust of 11544 kgS
-
Tool Turret: 12 stations, accommodating OD turning tools up to 25 mm and ID boring tools up to 50 mm
-
Machine Weight: Ranging from 9000 kg (HL-55S 1250)
These specifications highlight the HL-55 series’ capability to handle large workpieces with precision and efficiency.
🛠️ Features & Benefits
-
Heavy-Duty Construction: The slant bed design and box way construction provide exceptional rigidity, ideal for heavy cutting operations.
-

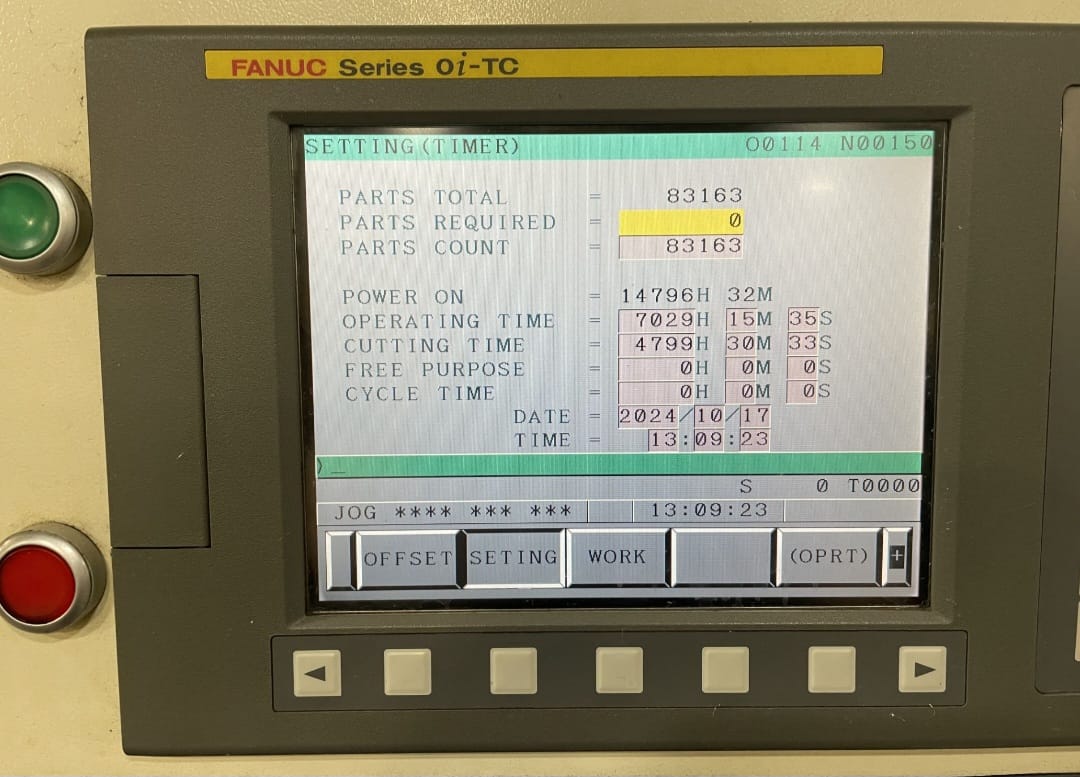

High Precision: The FANUC 0i-TC CNC control system ensures accurate and reliable machining.
-
Versatility: Suitable for a wide range of turning applications, including large and complex parts.
-
User-Friendly Interface: The control system offers intuitive programming and operation, reducing setup times and increasing productivity.
