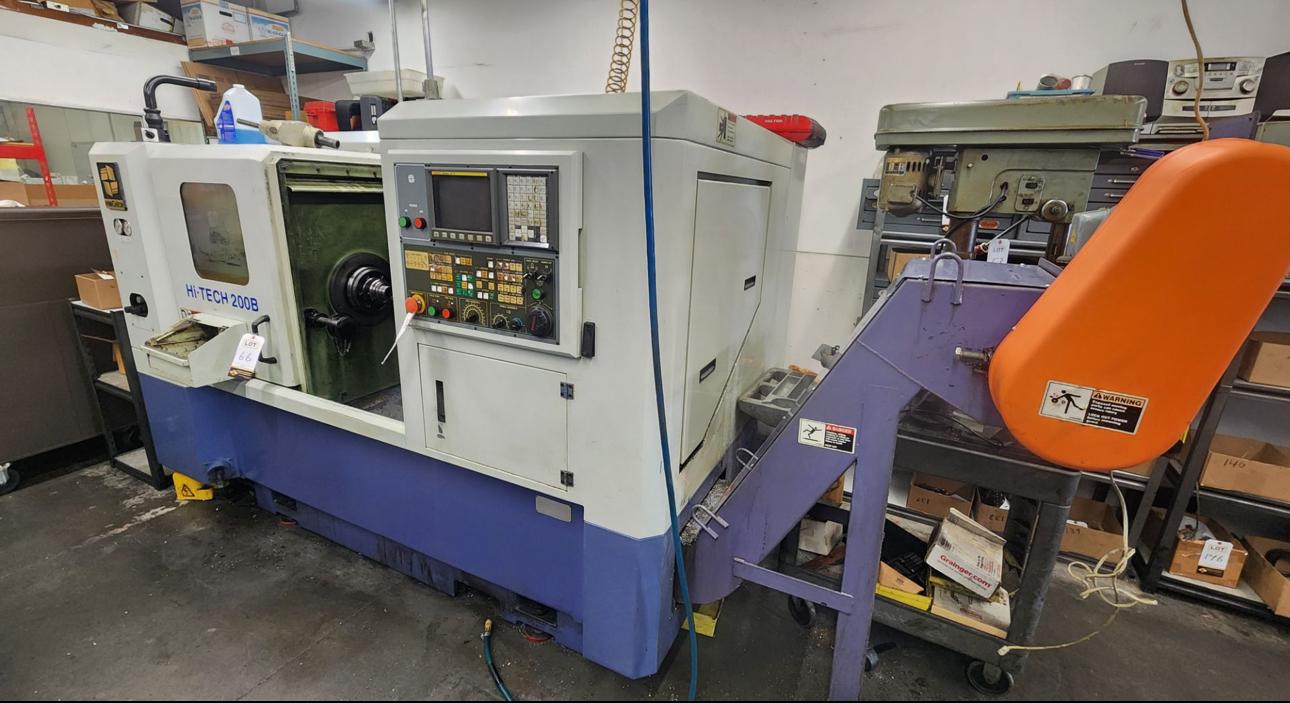

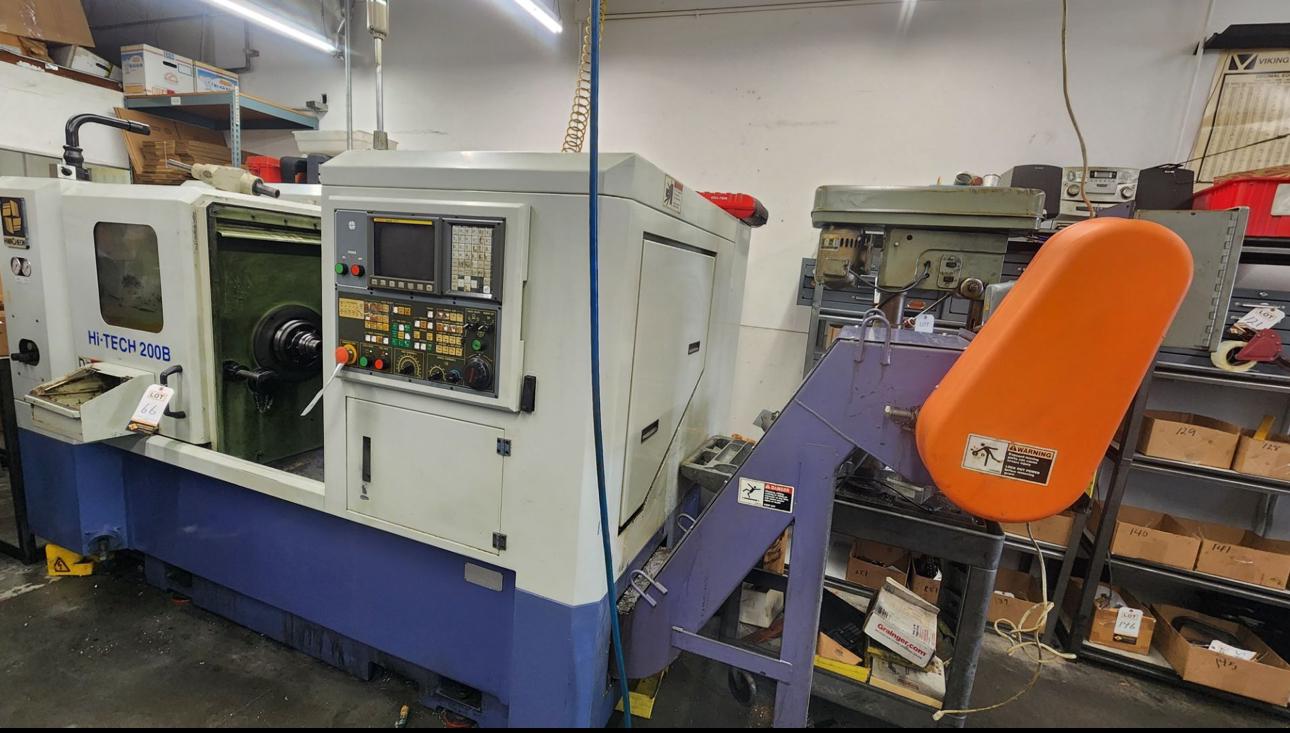

CNC TURNING CENTER/ CNC LATHE MACHINE HWACHEON HI-TECH 200B

Specifications for the Hwacheon Hi-TECH 200B CNC lathe:

Machine Specifications (Metric)

Swing Over Bed: 500 mm

Swing Over Saddle: 390 mm

Maximum Turning Diameter: 350 mm

Maximum Turning Length: 385–400 mm

Chuck Size: 250 mm (10″)

Bar Capacity: 64–76 mm

Spindle Bore Diameter: 75 mm

Spindle Nose: A2-6 or A2-8 (varies by configuration)

Spindle Speed Range: Up to 3,500 RPM

Spindle Motor Power: 11–15 kW

X-Axis Travel: 195 mm

Z-Axis Travel: 430 mm

Rapid Traverse Speed: 30 m/min (X and Z axes)

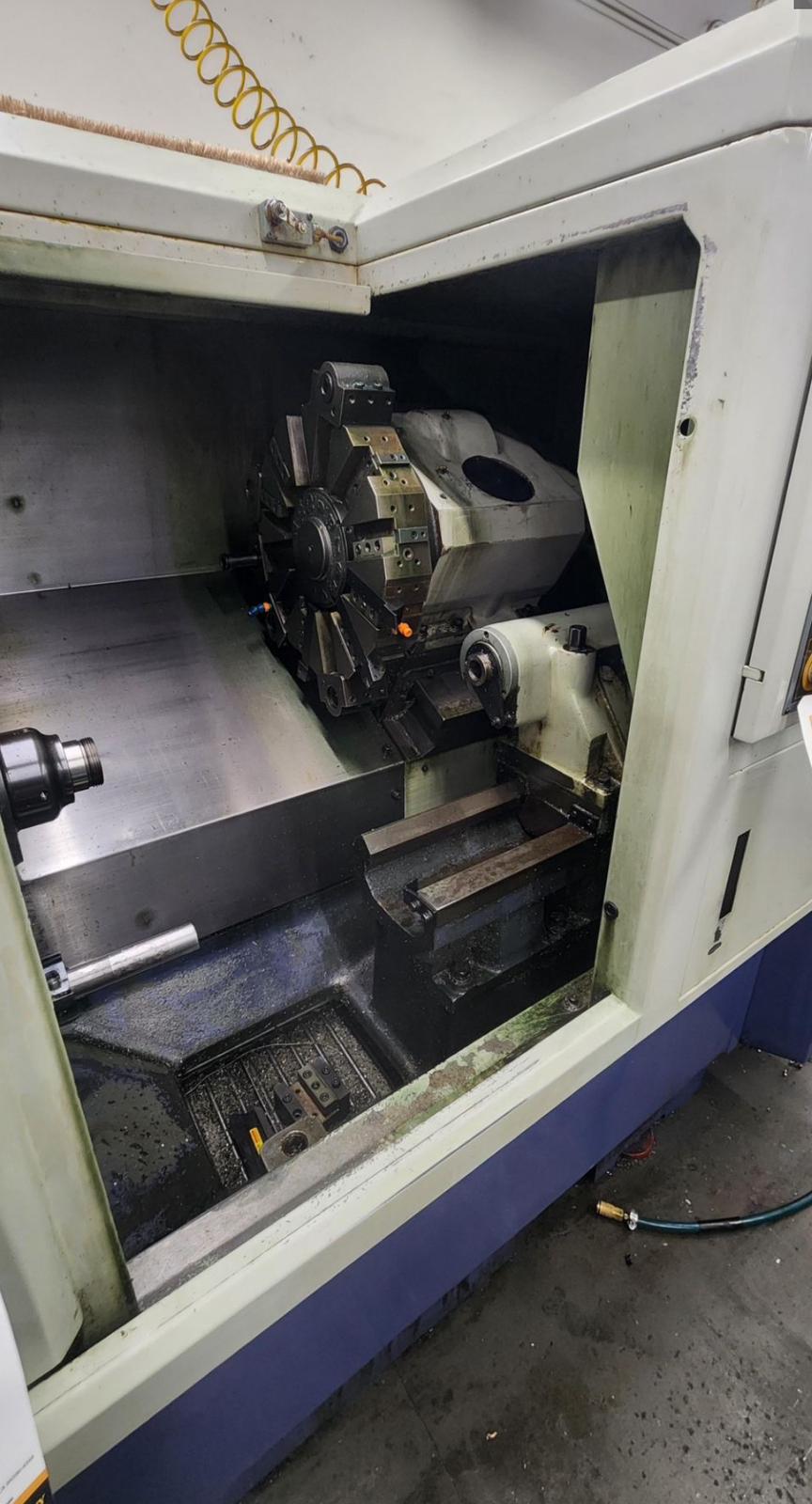

Turret Capacity: 12 stations

Tool Size: 25 mm × 40 mm

Indexing Time: 0.15 seconds per station

Tailstock Quill Diameter: 80 mm

Tailstock Quill Stroke: 100 mm

Tailstock Taper: MT4

Control System: Fanuc 0i-TF or 18i-TB

Machine Dimensions (L × W × H): Approximately 2645 mm × 1675 mm × 1720 mm

Machine Weight: 4200–4500 kg
