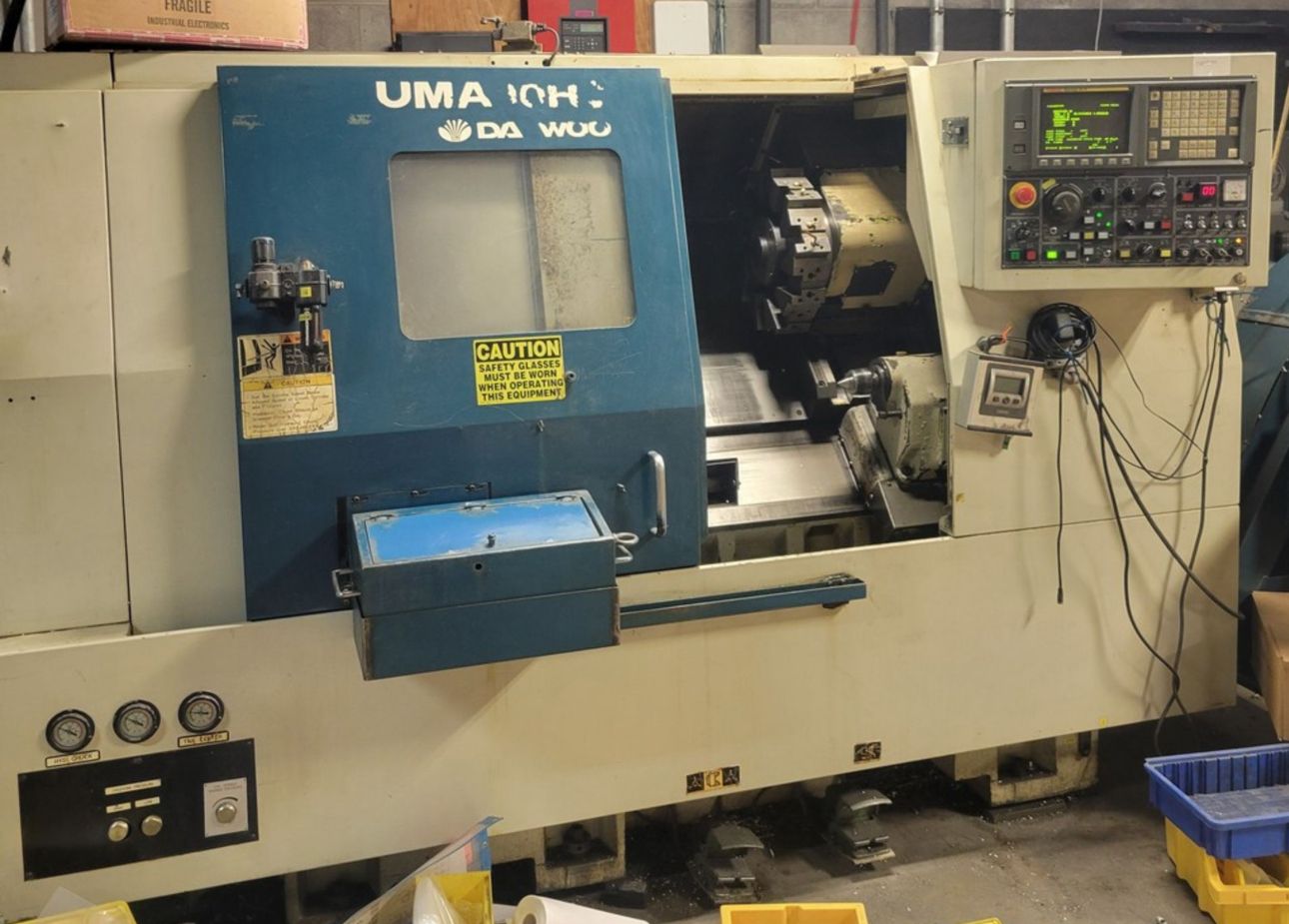

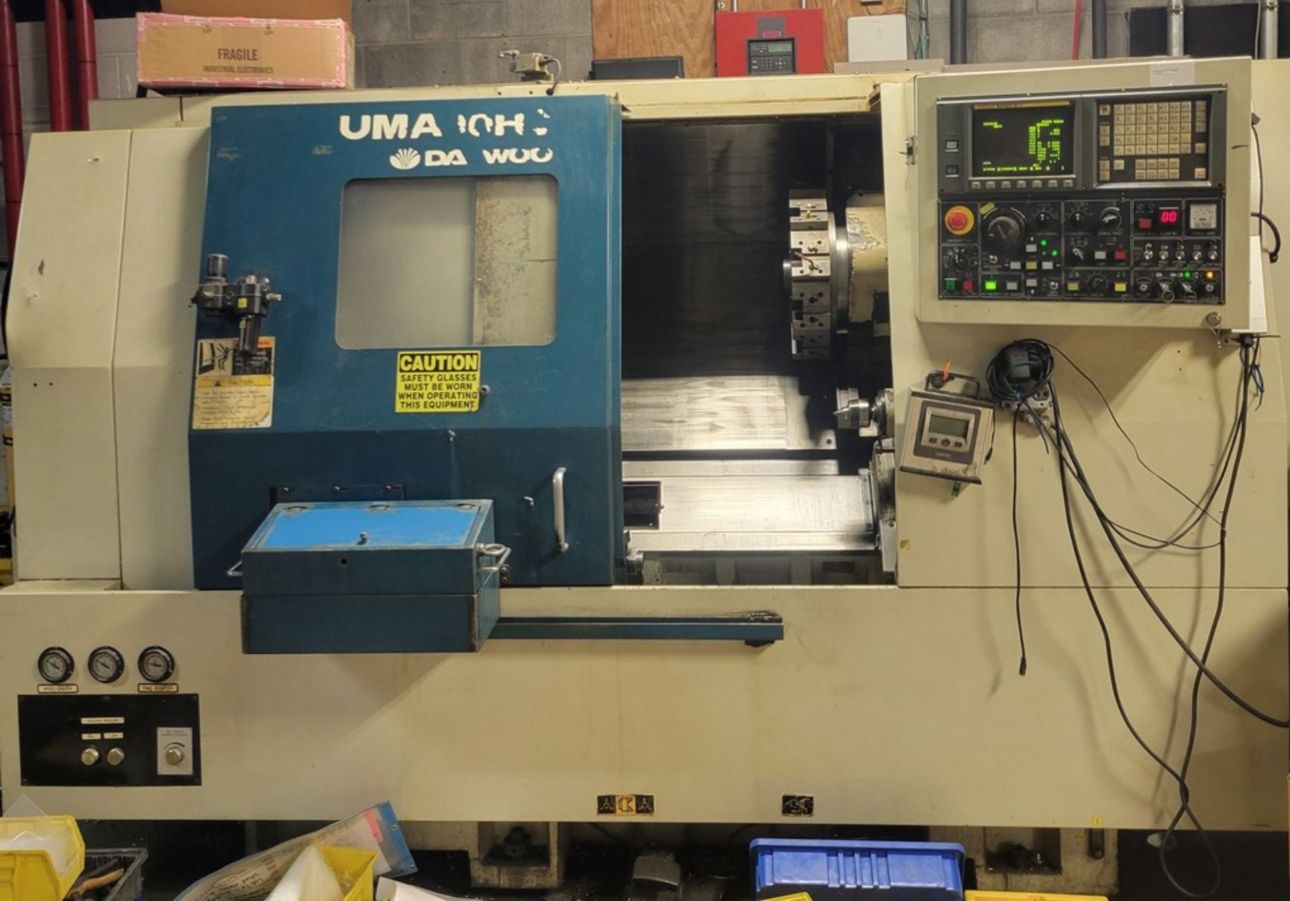

CNC TURNING CENTER DAEWOO PUMA 10HC

📌 Daewoo Puma 10HC Key Specs (Metric)

• Swing over bed ways: 500.4 mm

• Maximum machining (turning) diameter: 370.8 mm

• Maximum machining length / turning length: 530.9 – 556 mm

• Distance between centers: 556.3 mm

• X-axis travel: 210.8 mm

• Z-axis travel: 551.2 mm

• Chuck size: 254 mm

• Bar capacity: 73.7 mm

• Spindle bore (hole through): ~85.9 mm

• Spindle nose: A2-8

• Spindle speed: up to 3,500 rpm

• Spindle motor power: 18.6 kW (~25 hp)

• Rapid traverse rate (X): ~1,600 cm/min (16 m/min)

• Rapid traverse rate (Z): ~1,999 cm/min (20 m/min)

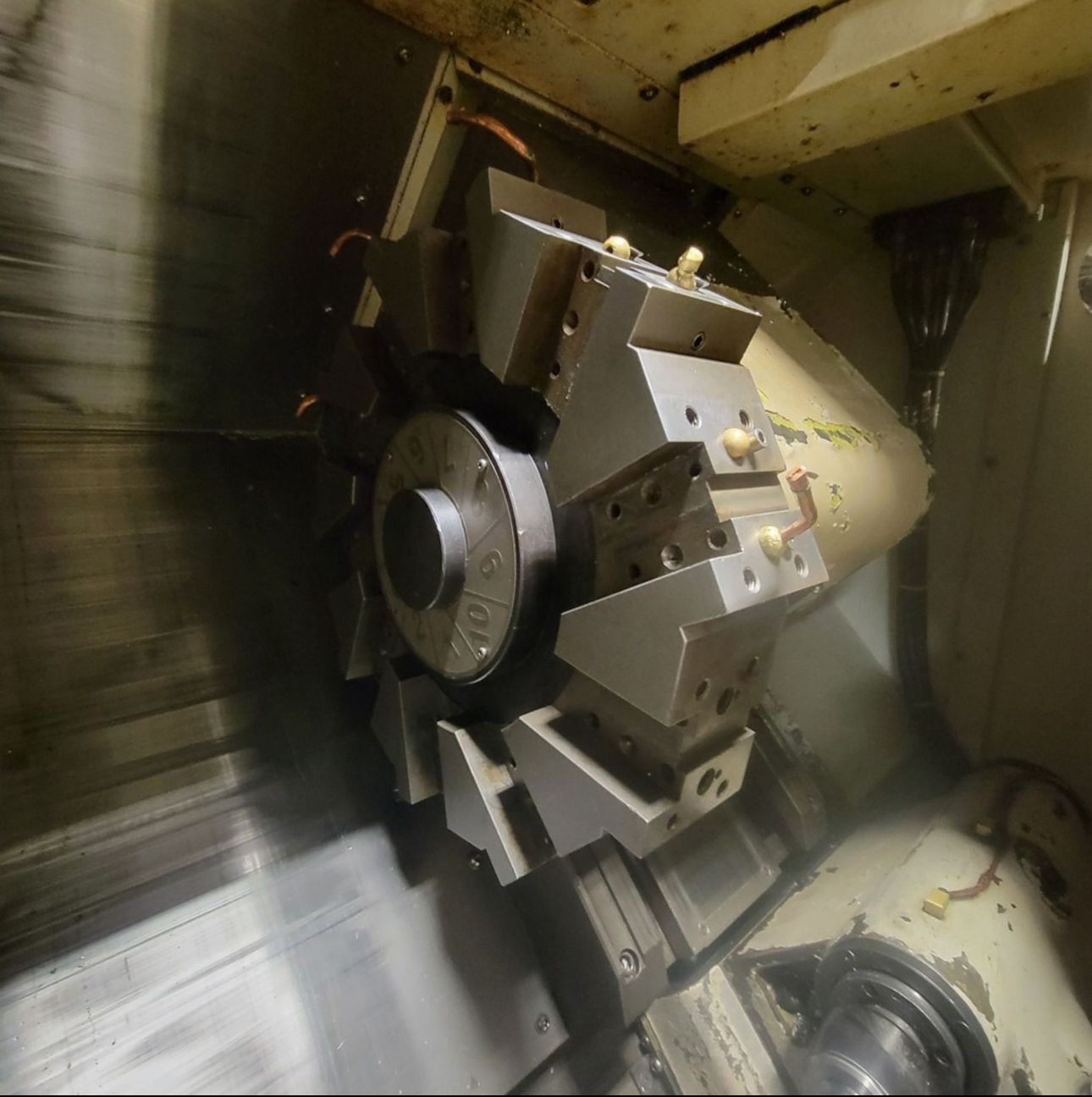

• Turret stations: 10 tools

🧱 General Machine Dimensions / Weight (approximate)

• Machine footprint (with attachments varies): ~2,900 mm (L) × 1,930 mm (W) × 1,803 mm (H) depending on configuration

• Weight: ~4,650 – 4,800 kg

🔧 Additional Typical Features

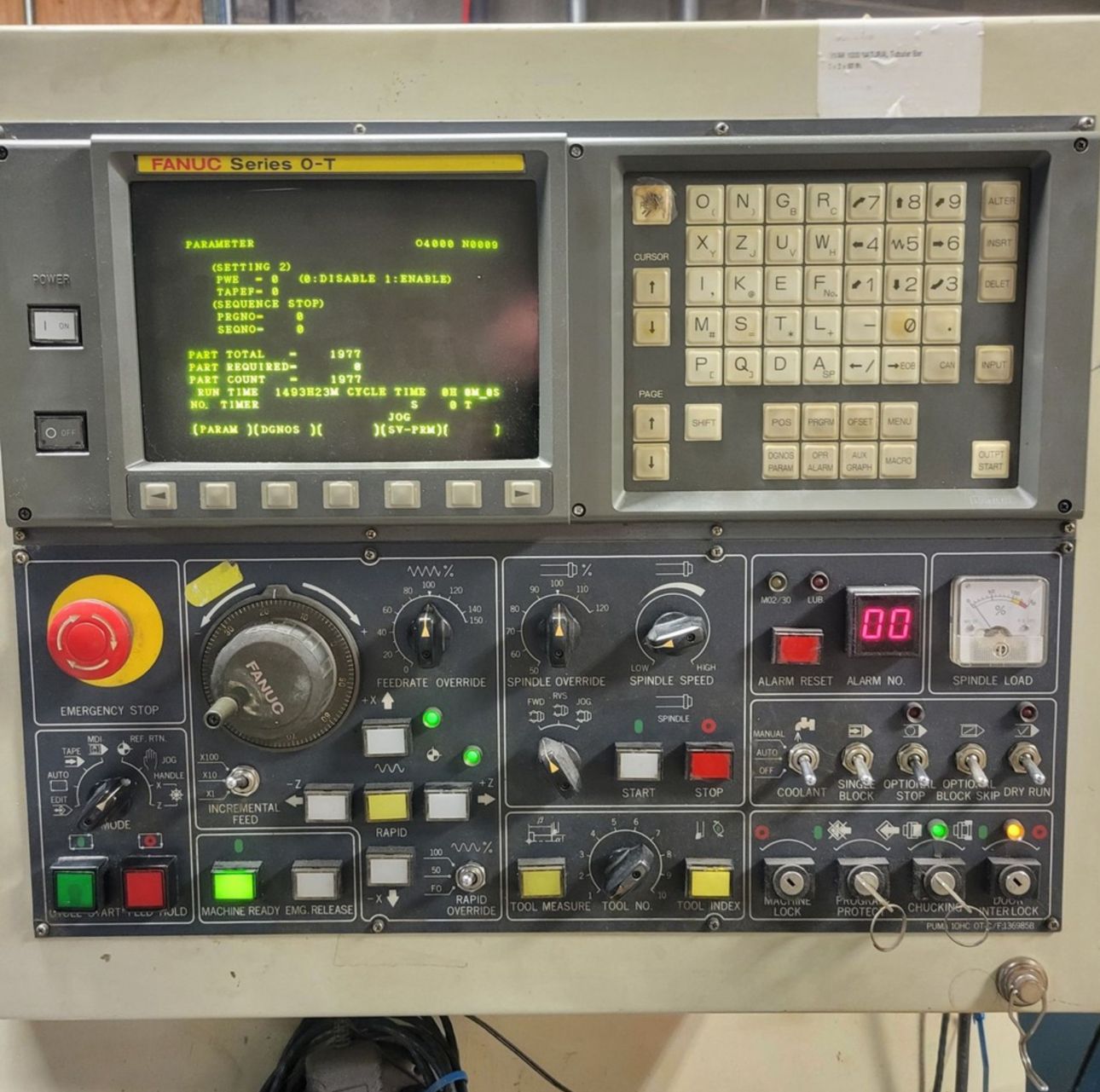

• CNC Control: Often Fanuc Series OT

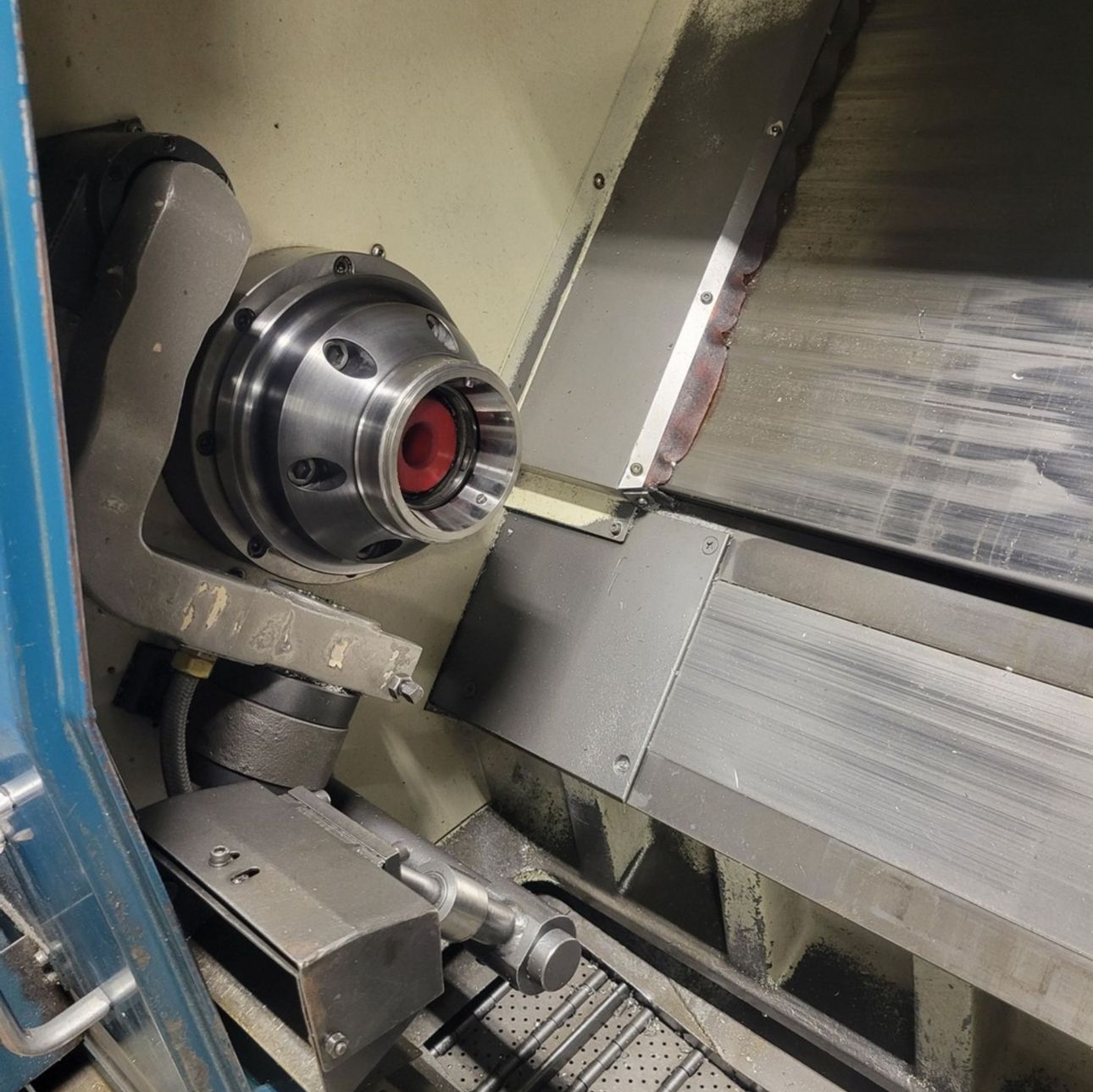

• Tailstock: Programmable / hydraulic tailstock on many unitS

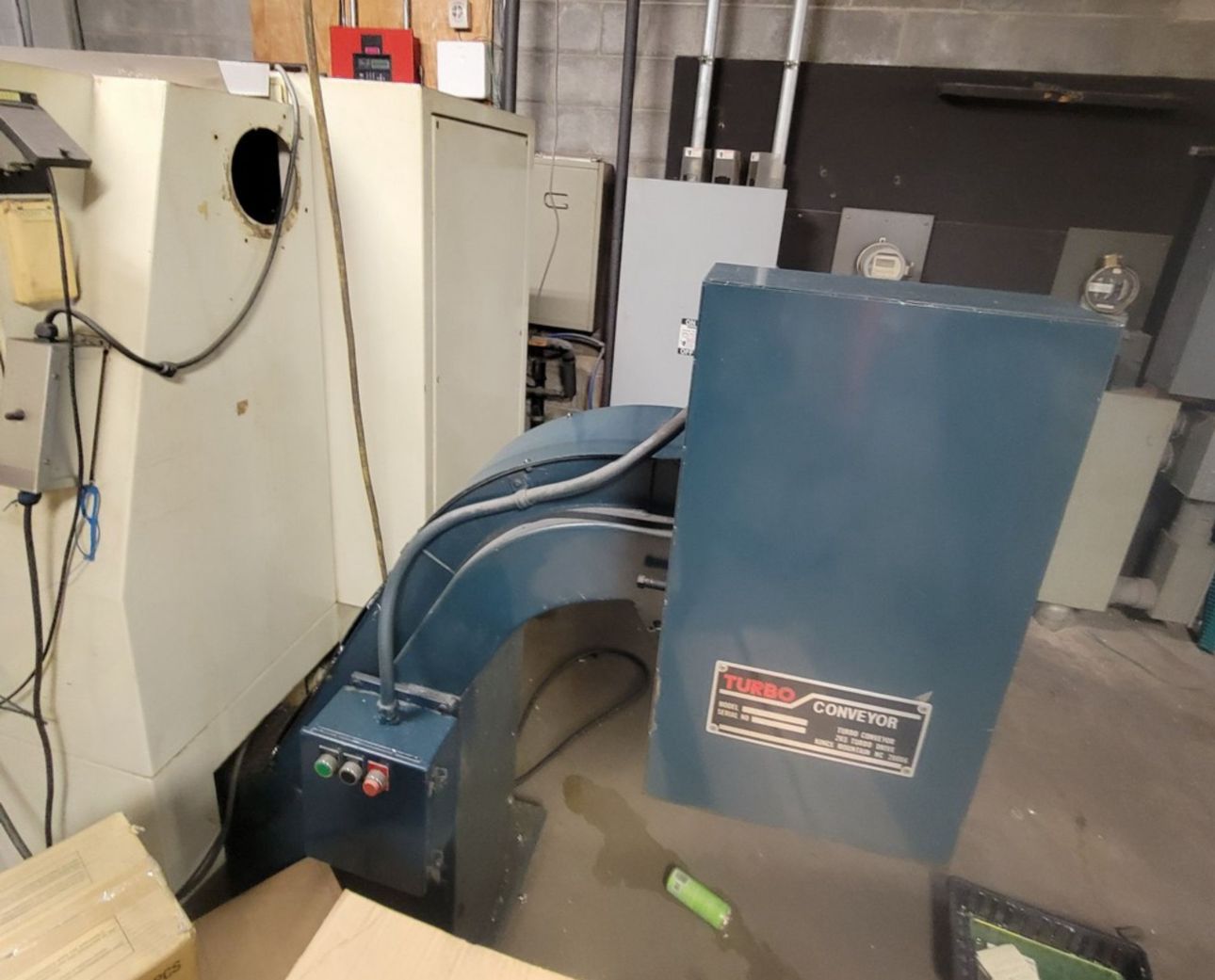

• Chip Handling: typically chip conveyor included

• Coolant system: included on many examples
