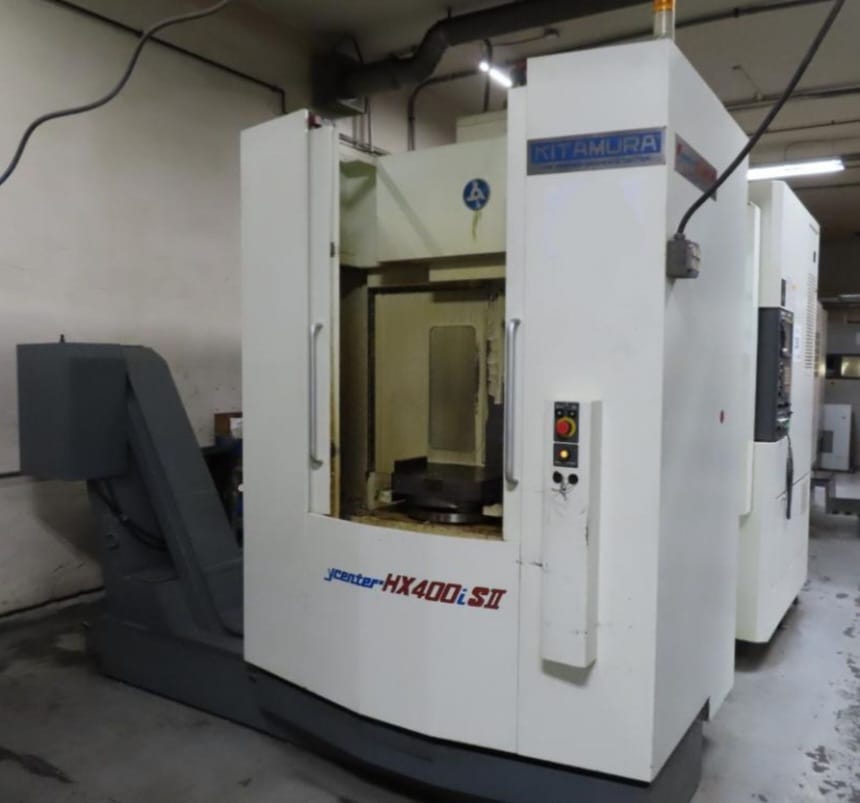

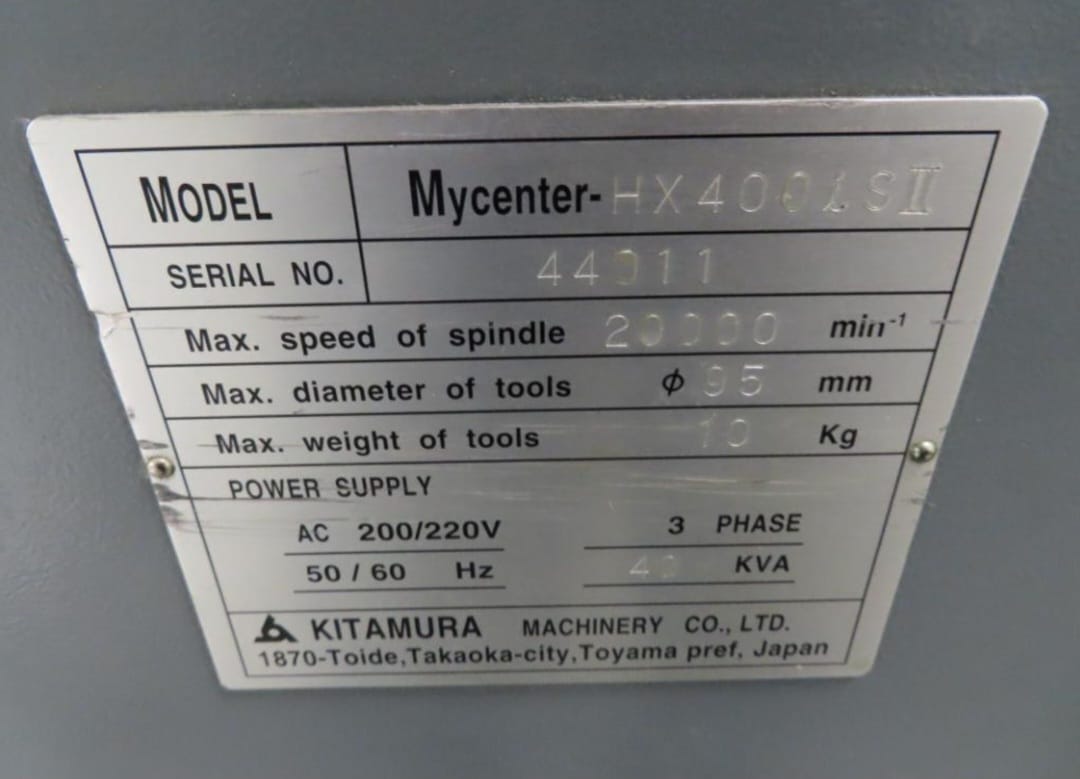

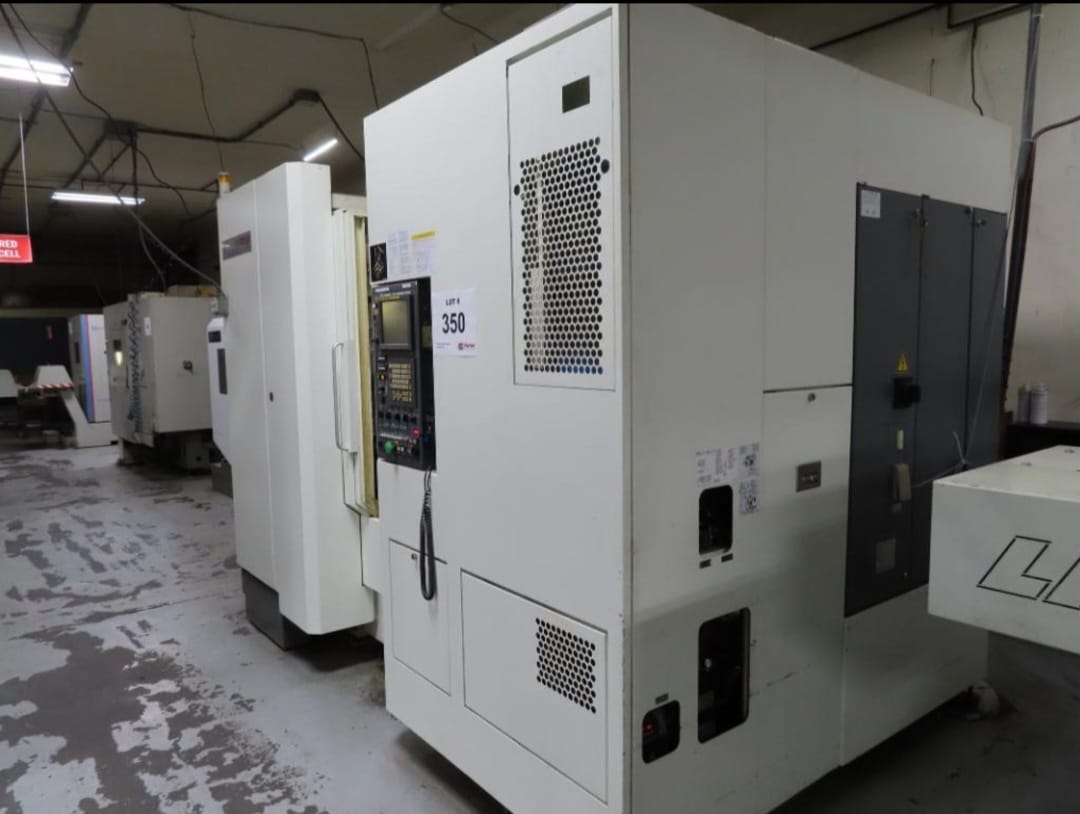

Horizontal Machining Center Kitamura HX 400i SII

Machine Specifications (Metric)

Axes Travel:

X-Axis: 660 mm

Y-Axis: 610 mm

Z-Axis: 560 mm

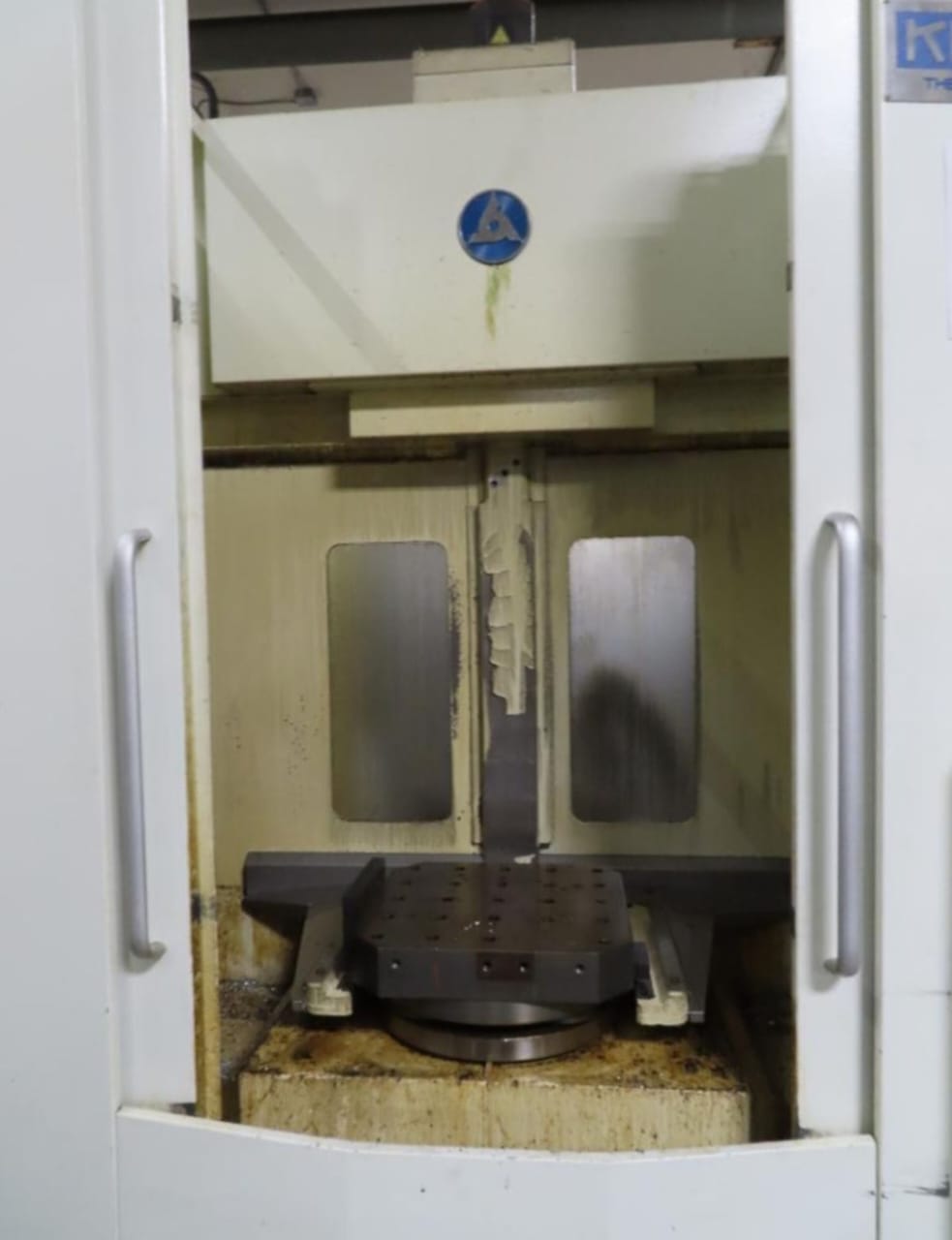

Pallet System:

Pallet Size: 400 mm × 400 mm

Number of Pallets: 2

Pallet Load Capacity: 400 kg

Pallet Indexing: 0.001° (Full 4th Axis)

Pallet Change Time: 5 seconds

Workpiece Capacity:

Maximum Workpiece Diameter: 700 mm

Maximum Workpiece Height: 960 mm

Spindle:

Spindle Taper: CAT 40

Spindle Speed: Up to 13,000 RPM (2-step geared head)

Spindle Motor Power: Approximately 14.9 kW (20 HP)

Spindle Torque: Approximately 270 Nm

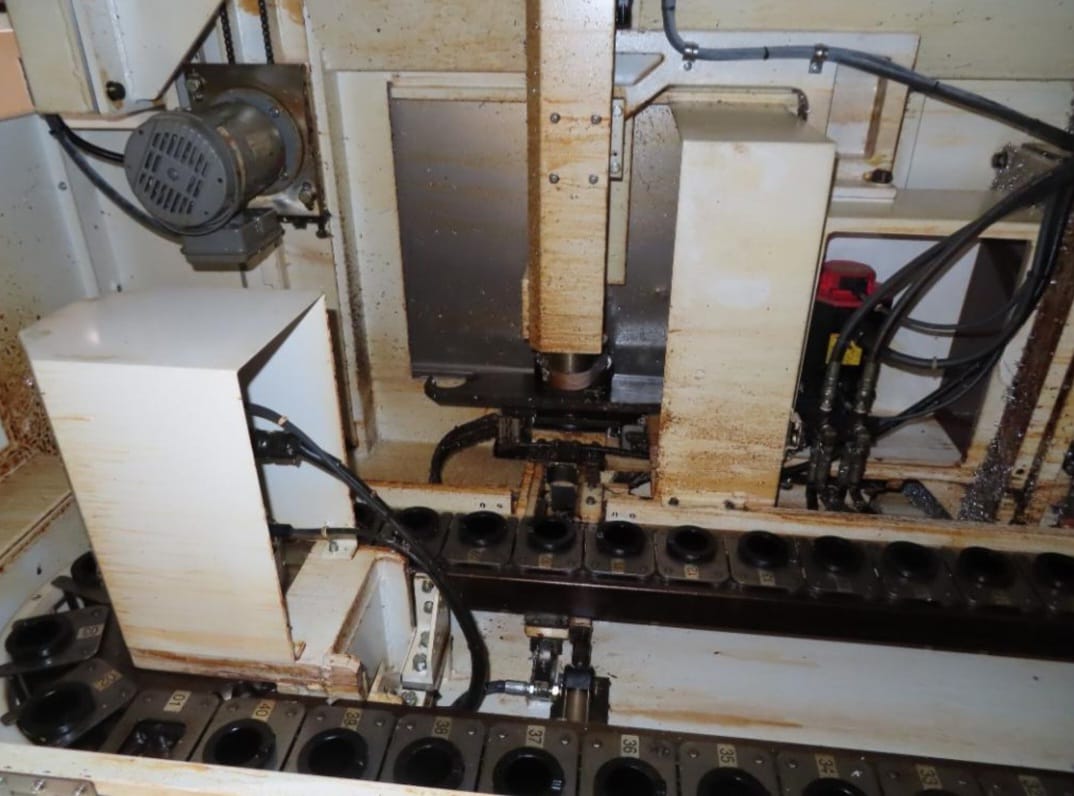

Tool Changer:

Tool Capacity: 50 tools

Maximum Tool Diameter: 150 mm

Maximum Tool Length: 360 mm

Maximum Tool Weight: 10 kg

Tool Change Time: Approximately 1 second

Feed Rates:

Rapid Traverse (X/Y/Z): 50,000 mm/min

Cutting Feedrate: Up to 50,000 mm/min

Machine Dimensions & Weight:

Dimensions (L × W × H): Approximately 4,000 mm × 2,500 mm × 2,500 mm

Machine Weight: Approximately 8,500 kg

Control System:

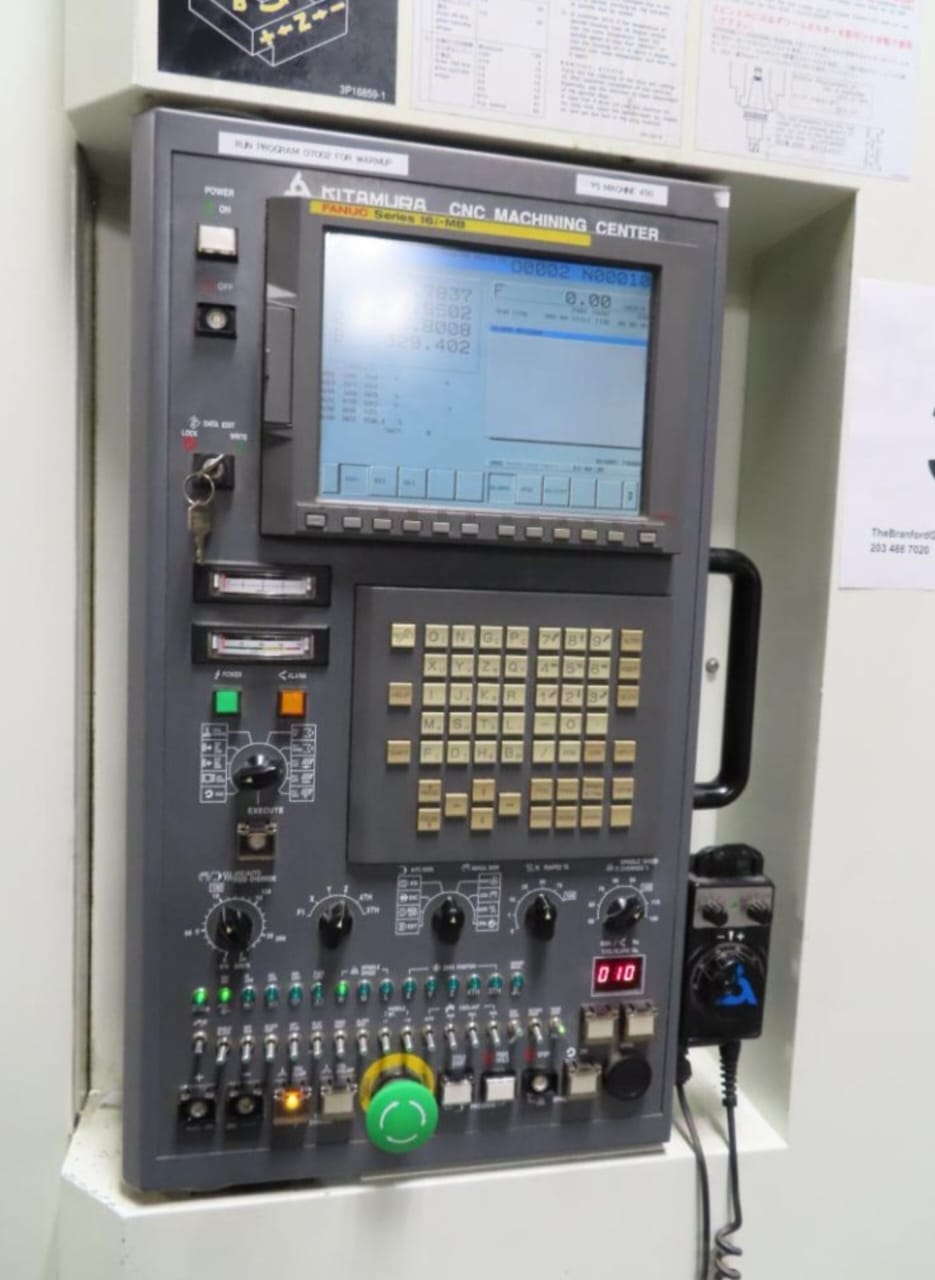

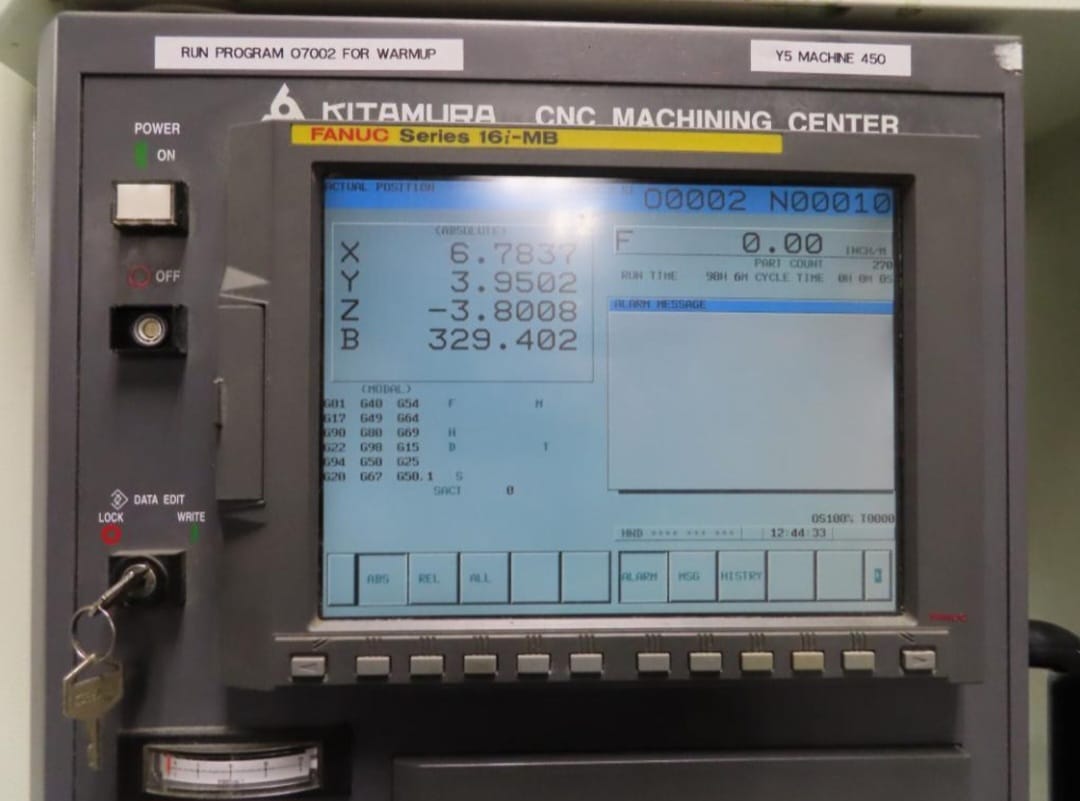

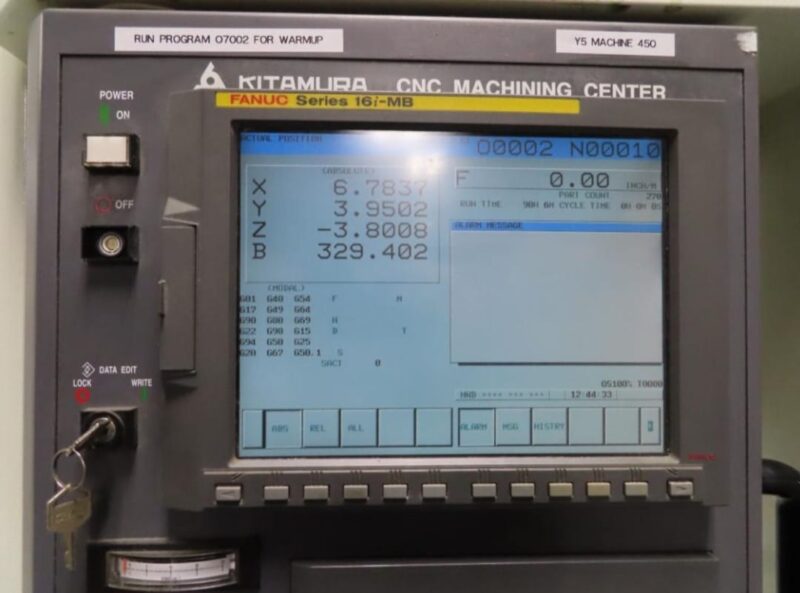

CNC Control: FANUC 16i-MB with 10.4″ Color LCD Screen
