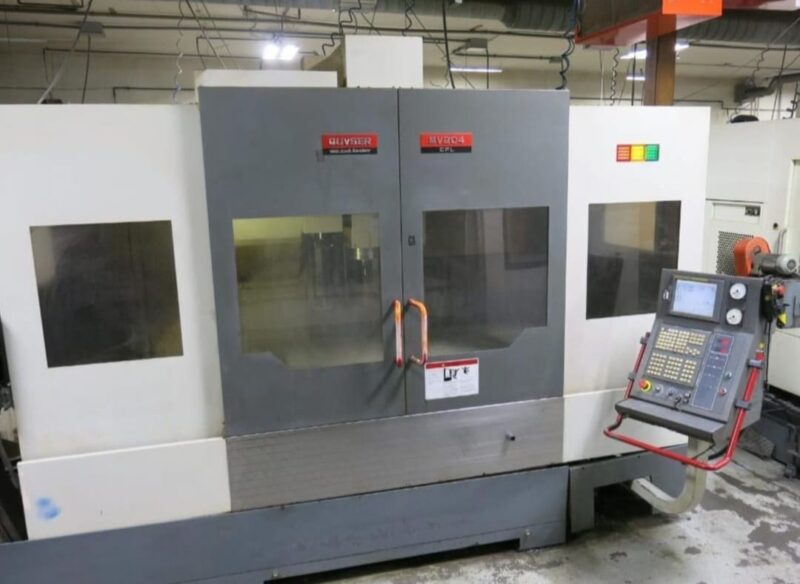

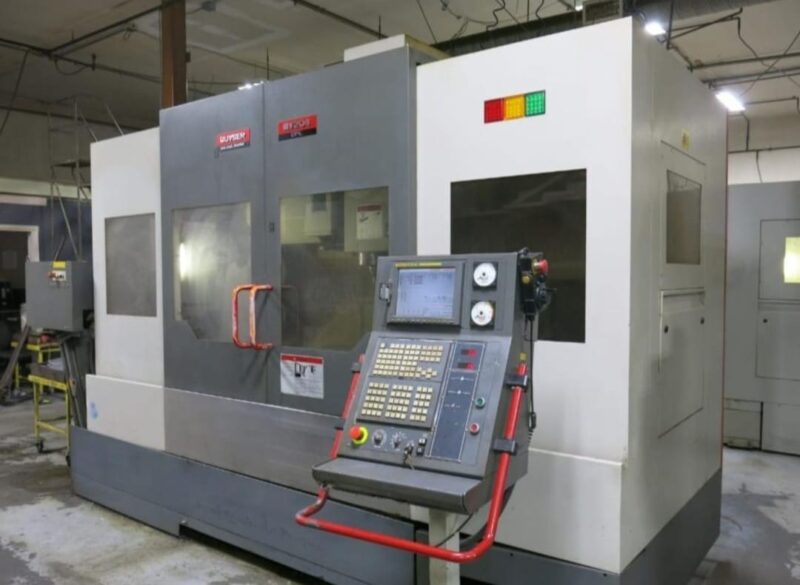

QUASER MCV240CPL/12B

The Quaser MCV240CPL/12B is a high-performance vertical machining center (VMC) designed for precision machining in industries such as aerospace, automotive, and mold-making. While specific details for the MCV240CPL/12B model are limited, it shares similarities with other models in the Quaser MV series, such as the MV204CPL/12.

Key Specifications (Based on MV204CPL/12)

• Travel Range:

  • X-axis: 1,524 mm

  • Y-axis: 700 mm

  • Z-axis: 610 mm

• Table Dimensions: 1,700 x 700 mm

• Maximum Table Load: 2,000 kg

• Spindle:

  • Taper: BT 40 BIG PLUS

  • Max Speed: 12,000 rpm

  • Power: 33 kW

• Tool Changer:

  • Type: Chain

  • Positions: 30

  • Max Tool Length: 300 mm

  • Max Tool Weight: 7 kg

• Rapid Feed Rates:

  • X/Y: 36,000 mm/min

  • Z: 36,000 mm/min

• Precision:

  • Repeatability: ±0.008 mm

  • Positioning: ±0.004 mm

• Dimensions: 4,520 x 2,900 x 3,080 mm

• Weight: Approximately 10,100 kg

These specifications suggest that the MCV240CPL/12B is equipped with advanced features suitable for high-precision machining tasks. For more detailed information or to inquire about purchasing this model, you can visit the official Quaser website: quaser.com.
