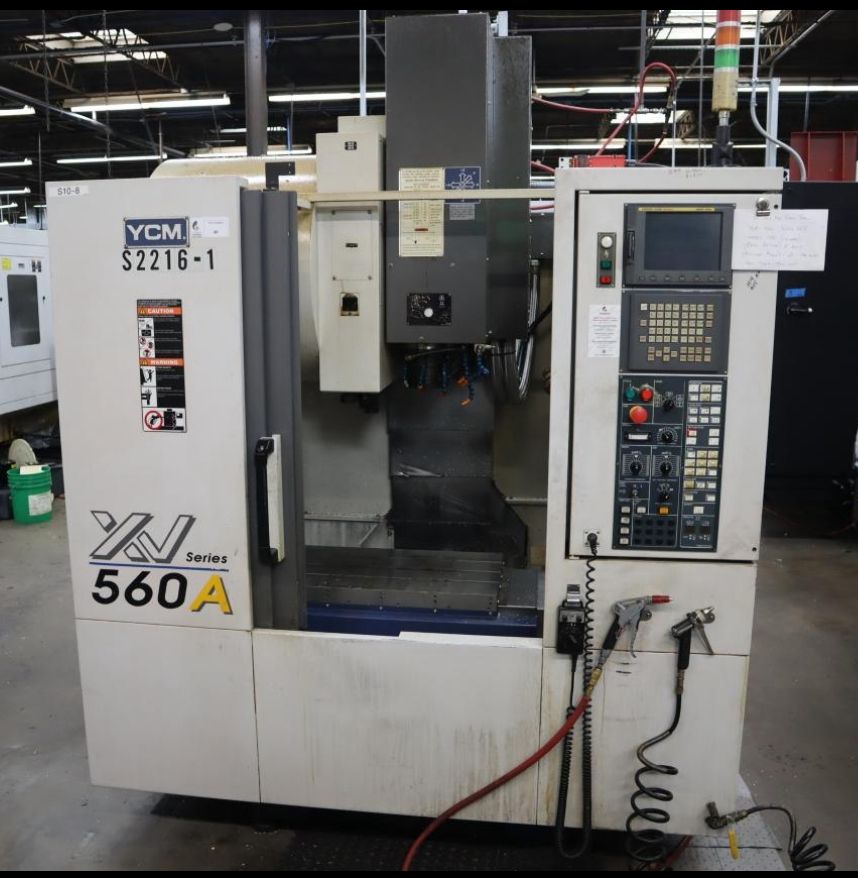

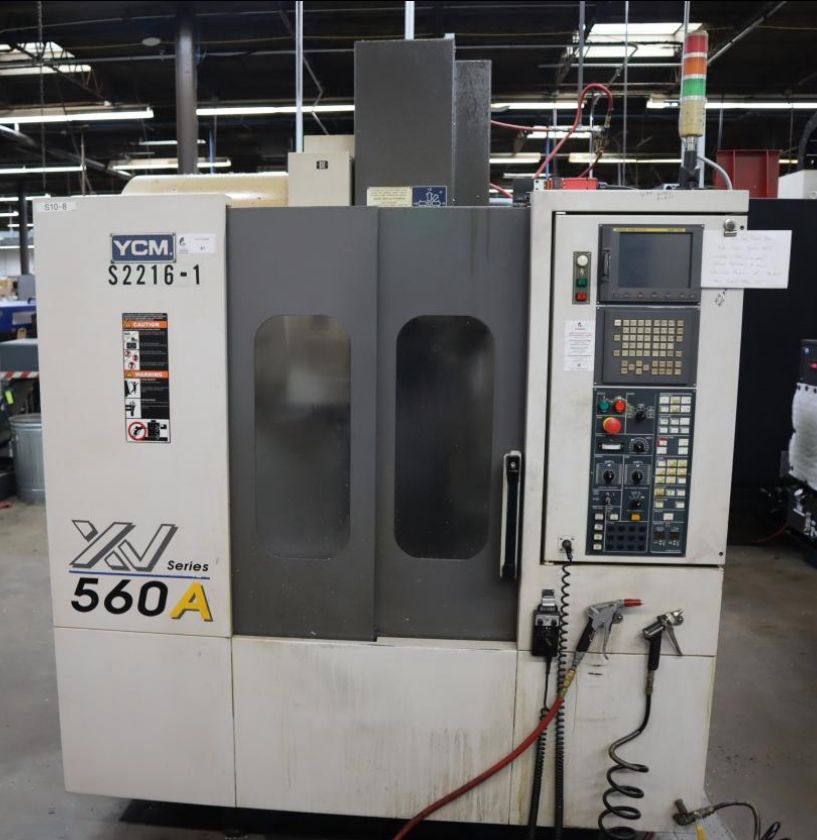

YCM XV 560A
Get Instant Query| CNC Machine Specifications | |
|---|---|
| MAKE/ MODEL. ORIGIN | YCM 560A/ TAIWAN |
| YEAR OF MANUFACTURE | 2008 |
| X/Y/Z AXIS TRAVELS | 560MM/410MM/450MM |
| TABLE SIZE (WORKIG SURFACE) | 700MM X 420MM |
| MAX TABLE LOAD | 300KGS |
| SPINDLE TAPPER | BT40 |
| SPINDLE SPEED | 0-10000 RPM |
| TOOL MAGZINE CAPACITY | 20TOOLS |
| CONTROL SYSTEM | FANUC 18iM |
Description
🛠️ General Machine Specs
-

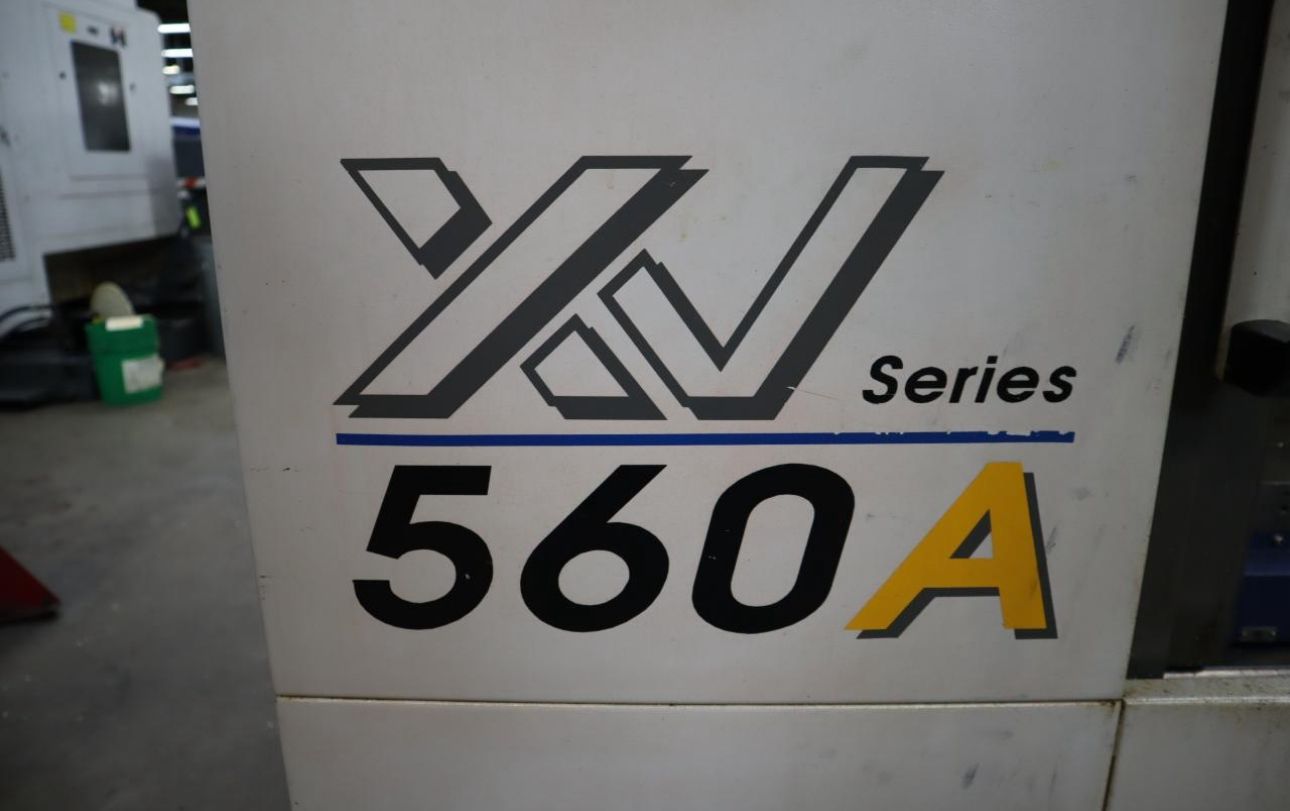

Model: YCM 560A (also referenced as NXV560A / XV560A)
-
Machine Type: Vertical CNC Machining Centre
-
Axes: 3-axis (X, Y, Z)

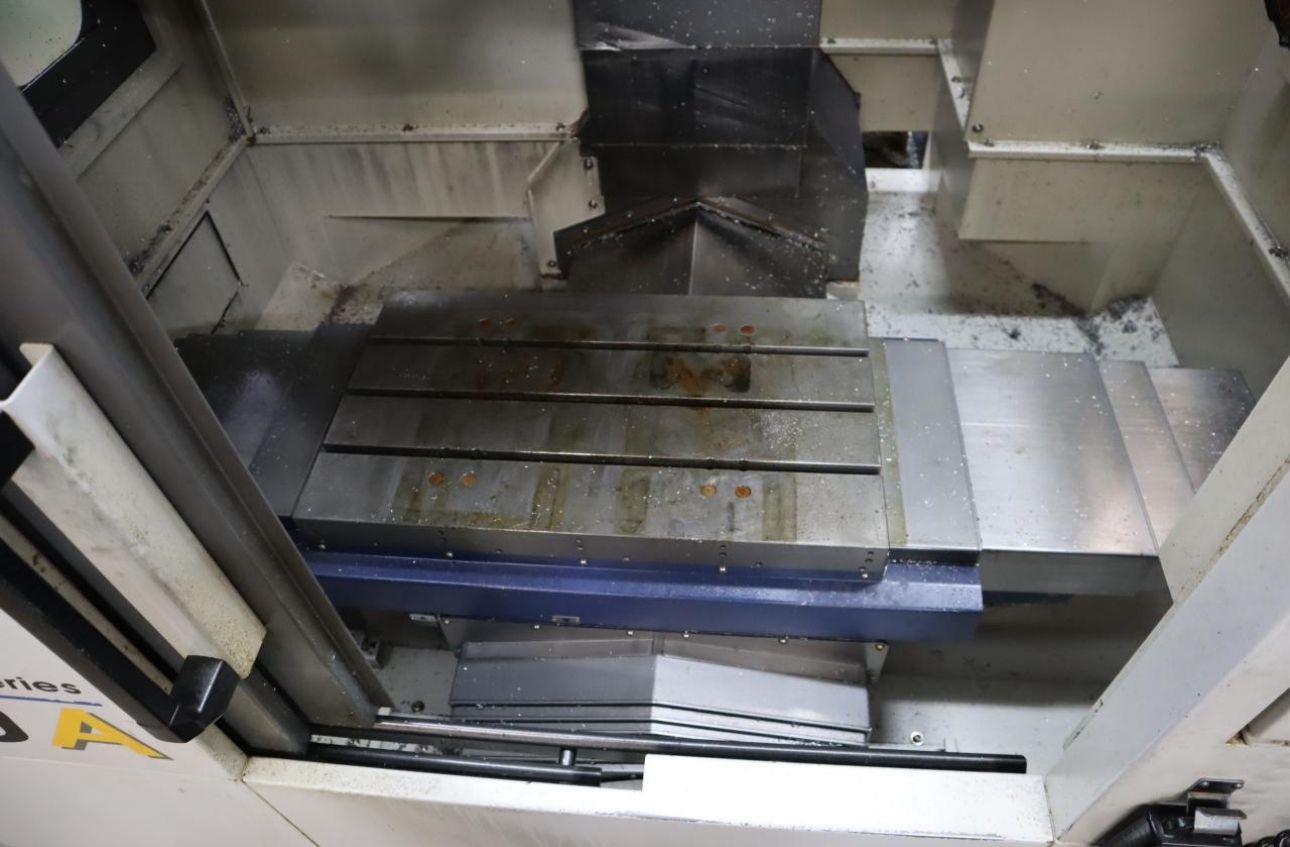

📏 Travels & Table
-
X-Axis Travel: ~560 mm
-
Y-Axis Travel: ~410 mm
-
Z-Axis Travel: ~450 mm
-
Table Surface Size: ~560 × 410 mm
-
Maximum Table Load: ~120 kg

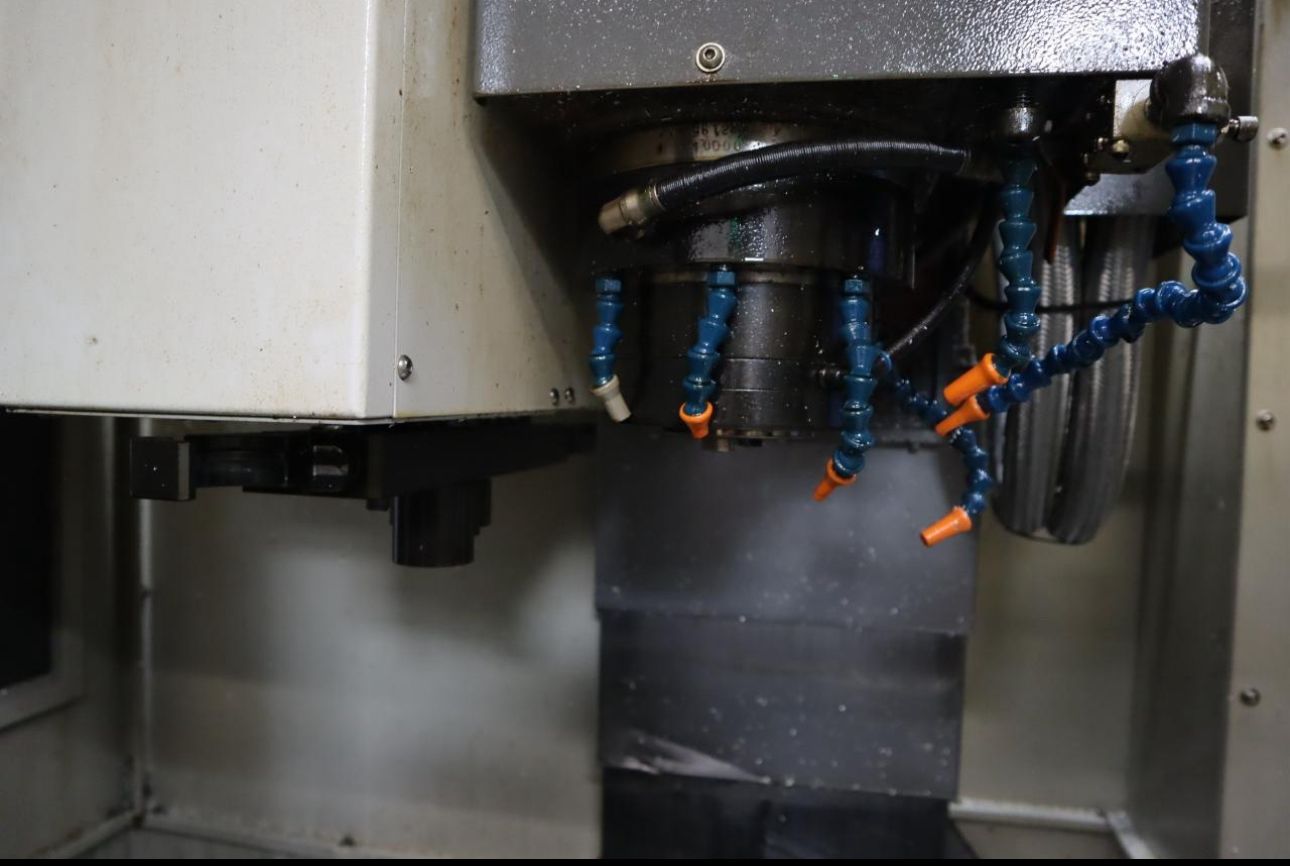

🌀 Spindle
-
Spindle Taper: CAT 40 / BBT40 configuration
-
Spindle Speed: Standard up to ~12 000 rpm (optional 15 000 rpm)
-
Spindle Power: ~18.5 kW (~25 hp)
-
Distance Spindle Nose → Table: ~25–475 mm
🔄 Tooling
-
Tool Changer: Automatic Tool Changer (ATC)
-
Tool Stations: ~20–24 tools possible (varies by configuration)
-
Max Tool Weight: ~6 kg per tool
⏱️ Feed & Motion
-
Rapid Feedrate (approx): up to ~48 000 mm/min (~48 m/min) on each axis (machine dependent)
⚙️ Machine Weight & Structure
-
Approx Machine Weight: ~3830–3850 kg
